Crosswire welding is an essential technique used to join two intersecting wires, often at a 90-degree angle. Known for its precision and strength, this method finds application in industries like battery manufacturing, electronics, automotive wiring, and wire mesh production. In this blog, we’ll explore the step-by-step process, recommend the right equipment from C-Welding, and weigh the pros and cons of cross-wire welding to help you make informed decisions for your projects.

What Is Crosswire Welding?

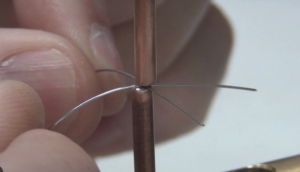

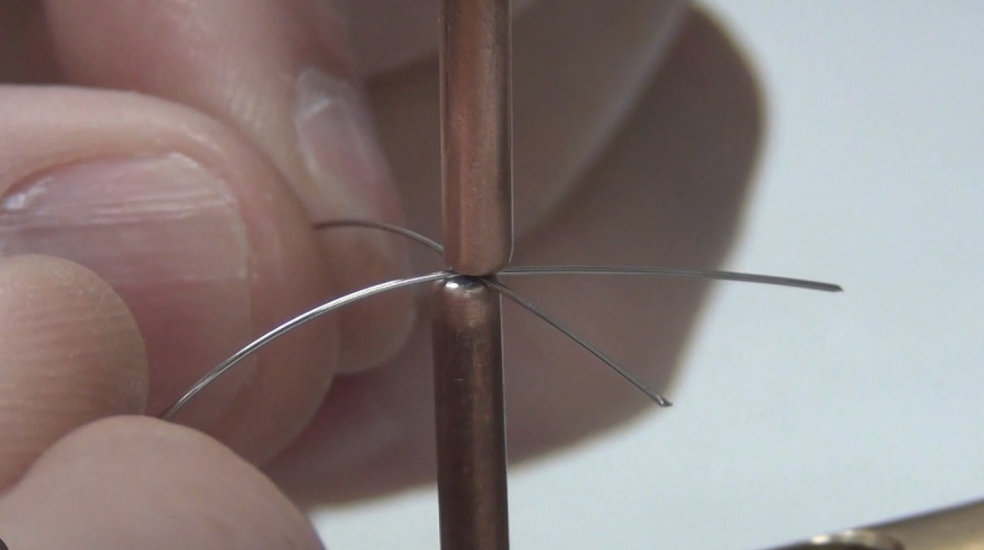

Cross-wire welding involves joining two wires by applying heat and pressure at their intersection. This is typically done using resistance welding, which generates heat through electrical resistance, melting the material locally. When combined with force, the wires fuse together into a solid joint.

This technique is ideal for creating conductive joints, structural reinforcements, or connections where minimal additional material is preferred. The result is a reliable, precise bond suitable for high-performance applications.

How to Perform Cross-Wire Welding

Step-by-Step Process

1. Positioning:
   • Align the wires at the desired angle, typically perpendicular.
   • Ensure they are securely clamped or held in place to avoid shifting during welding.
2. Machine Setup:
   • Use a resistance welding machine to configure the required parameters:
     • Current: Adjust the electrical current based on the wire material and thickness.
     • Force: Set the clamping force to ensure proper contact.
     • Weld Time: Optimize the duration of heat application for precise fusion.
3. Welding:
   • Activate the machine to apply current and pressure simultaneously.
   • Allow the heat to generate at the contact point, melting the wires and forming a joint.
4. Cooling:
   • Release the pressure only after the joint has solidified. Proper cooling is essential to prevent defects.
5. Inspection:
   • Check the weld for strength, uniformity, and conductivity to ensure it meets quality standards.

Recommended Equipment from C-Welding

C-Welding offers a range of high-quality resistance welding machines designed specifically for cross-wire applications:

1. Sunstone Advanced Dual Pulse CD Spot Welder Series:
   • Ideal for medium to heavy-duty cross-wire welding.
   • Features adjustable current, pressure, and cycle times for precise control.
   • Suitable for applications in battery manufacturing and wire mesh production.
2. Compact Spot Welders:
   • Lightweight and portable, perfect for smaller wires or on-site projects.
   • User-friendly interface and quick setup.
   • Best for automotive wiring and electronics.
3. Advanced Laser Welders:
   • Offers pinpoint accuracy and minimal heat-affected zones.
   • Ideal for delicate or intricate work like micro-electronics or fine wire applications.

Our machines come with comprehensive training support to ensure you get the most out of your investment.

Pros and Cons of Cross-Wire Welding

Advantages

• Strong Joints: Produces robust, durable bonds capable of withstanding mechanical and electrical stresses.
• High Conductivity: Ensures efficient electrical performance, critical in applications like battery packs and wiring harnesses.
• Precision: Delivers consistent, repeatable results, making it ideal for automated processes.
• Material Efficiency: Requires no additional solder or filler material.
• Versatility: Suitable for a wide range of materials, including copper, aluminum, and steel.

Disadvantages

• Equipment Cost: High-quality welding machines, such as those from C-Welding, require an initial investment.
• Material Limitations: Best suited for materials with good electrical and thermal conductivity.
• Operator Skill: Proper setup and parameter optimization require training and expertise.
• Defect Risk: Insufficient pressure, improper alignment, or incorrect heat settings can result in weak joints or deformation.

Applications of Crosswire Welding

• Battery Manufacturing: Joins bus bars and terminals in lithium-ion batteries.
• Wire Mesh Production: Creates grids for fences, cages, and reinforcement materials.
• Automotive Wiring: Assembles harnesses and grounding systems.
• Electronics: Connects fine wires in sensors, transformers, and circuit boards.

Final Thoughts

Cross-wire welding is a versatile, reliable method for joining wires across various industries. With the right equipment from C-Welding and proper training, you can achieve precise, durable joints that meet the highest standards of quality and performance. Whether you’re assembling batteries or creating wire meshes, C-Welding’s machines are designed to deliver exceptional results.

Ready to elevate your cross-wire welding process? Contact C-Welding today to learn more about our innovative welding solutions.
