crosswire welding

Mastering Crosswire Welding: A Guide to Techniques, Equipment, and Benefits

Crosswire welding is an essential technique used to join two intersecting wires, often at a 90-degree angle. Known for its precision and strength, this method finds application in industries like battery manufacturing, electronics, automotive wiring, and wire mesh production. In this blog, we’ll explore the step-by-step process, recommend the right equipment from C-Welding, and weigh the pros and cons of cross-wire welding to help you make informed decisions for your projects.

What Is Crosswire Welding?

Cross-wire welding involves joining two wires by applying heat and pressure at their intersection. This is typically done using resistance welding, which generates heat through electrical resistance, melting the material locally. When combined with force, the wires fuse together into a solid joint.

This technique is ideal for creating conductive joints, structural reinforcements, or connections where minimal additional material is preferred. The result is a reliable, precise bond suitable for high-performance applications.

crosswire welding


How to Perform Cross-Wire Welding

Step-by-Step Process

  1. Positioning:
    • Align the wires at the desired angle, typically perpendicular.
    • Ensure they are securely clamped or held in place to avoid shifting during welding.
  2. Machine Setup:
    • Use a resistance welding machine to configure the required parameters:
      • Current: Adjust the electrical current based on the wire material and thickness.
      • Force: Set the clamping force to ensure proper contact.
      • Weld Time: Optimize the duration of heat application for precise fusion.
  3. Welding:
    • Activate the machine to apply current and pressure simultaneously.
    • Allow the heat to generate at the contact point, melting the wires and forming a joint.
  4. Cooling:
    • Release the pressure only after the joint has solidified. Proper cooling is essential to prevent defects.
  5. Inspection:
    • Check the weld for strength, uniformity, and conductivity to ensure it meets quality standards.

Recommended Equipment from C-Welding

C-Welding offers a range of high-quality resistance welding machines designed specifically for cross-wire applications:

  1. Sunstone Advanced Dual Pulse CD Spot Welder Series:
    • Ideal for medium to heavy-duty cross-wire welding.
    • Features adjustable current, pressure, and cycle times for precise control.
    • Suitable for applications in battery manufacturing and wire mesh production.
  2. Compact Spot Welders:
    • Lightweight and portable, perfect for smaller wires or on-site projects.
    • User-friendly interface and quick setup.
    • Best for automotive wiring and electronics.
  3. Advanced Laser Welders:
    • Offers pinpoint accuracy and minimal heat-affected zones.
    • Ideal for delicate or intricate work like micro-electronics or fine wire applications.

Our machines come with comprehensive training support to ensure you get the most out of your investment.


Pros and Cons of Cross-Wire Welding

Advantages
  • Strong Joints: Produces robust, durable bonds capable of withstanding mechanical and electrical stresses.
  • High Conductivity: Ensures efficient electrical performance, critical in applications like battery packs and wiring harnesses.
  • Precision: Delivers consistent, repeatable results, making it ideal for automated processes.
  • Material Efficiency: Requires no additional solder or filler material.
  • Versatility: Suitable for a wide range of materials, including copper, aluminum, and steel.
Disadvantages
  • Equipment Cost: High-quality welding machines, such as those from C-Welding, require an initial investment.
  • Material Limitations: Best suited for materials with good electrical and thermal conductivity.
  • Operator Skill: Proper setup and parameter optimization require training and expertise.
  • Defect Risk: Insufficient pressure, improper alignment, or incorrect heat settings can result in weak joints or deformation.

Applications of Crosswire Welding

  • Battery Manufacturing: Joins bus bars and terminals in lithium-ion batteries.
  • Wire Mesh Production: Creates grids for fences, cages, and reinforcement materials.
  • Automotive Wiring: Assembles harnesses and grounding systems.
  • Electronics: Connects fine wires in sensors, transformers, and circuit boards.

Final Thoughts

Cross-wire welding is a versatile, reliable method for joining wires across various industries. With the right equipment from C-Welding and proper training, you can achieve precise, durable joints that meet the highest standards of quality and performance. Whether you’re assembling batteries or creating wire meshes, C-Welding’s machines are designed to deliver exceptional results.

Ready to elevate your cross-wire welding process? Contact C-Welding today to learn more about our innovative welding solutions.

Permanent Jewelry Welding

How To Start Your Own Permanent Jewelry Business: Join Our Free Webinar!

Introduction:

Are you fascinated by the world of permanent jewelry and eager to explore the intricate art of permanent jewelry welding? Look no further! C-Welding is thrilled to invite you to an exclusive, free webinar that delves into the nuances of permanent jewelry and the welding techniques that bring these stunning creations to life. Discover the secrets of permanent jewelry welding and elevate your skills with us.

Why Permanent Jewelry Matters:

Permanent jewelry isn’t just an accessory; it’s a form of self-expression and artistry. Crafting durable and visually appealing pieces requires expertise and precision. Permanent jewelry welding plays a pivotal role in achieving lasting and beautiful results. By using the right techniques and tools, artisans can seamlessly join metal pieces, creating unique, timeless pieces that stand the test of time.

What to Expect from Our Webinar:

Our free webinar is a golden opportunity for both beginners and seasoned craftsmen to gain insights into the world of permanent jewelry welding. Here’s what you can expect:

  1. Deep Dive into Permanent Jewelry: Explore the significance of permanent jewelry and its rising popularity in the fashion and art world.
  2. Mastering Permanent Jewelry Welding Techniques: Learn the essential techniques and best practices for achieving impeccable welds in your permanent jewelry creations.
  3. Choosing the Right Permanent Jewelry Welder: Understand the importance of selecting the right tools and equipment, and get tips on finding the perfect permanent jewelry welder for your needs.
  4. How to start your own Permanent Jewelry Business: We give you tips and trick to start your own permanent jewelry business.
  5. Guest Speaker and Permanent Jewelry Entrepreneur. We welcome our guest speaker Shari Tammietti to share her succes story about her permanent jewelry entrepreneurship.

REGISTER HERE

Mark your calendars for January 24th 20:00 Amsterdam Time, and reserve your spot now by visiting our registration page:

https://sunstone.webinargeek.com/how-to-start-your-own-permanent-jewelry-business.

Don’t miss this chance to enhance your skills and gain valuable insights into the fascinating world of permanent jewelry welding. Reserve your spot today and let’s shape the future of permanent jewelry together.



Permanent jewelry welding

How to achieve perfection with our permanent jewelry welders

Achieving Perfection: A Guide to Permanent Jewelry Welding with our welding equipment

Permanent jewelry welding is a delicate art that requires precision and the right tools. Among the leading equipment for achieving flawless results, Sunstone permanent jewelry welders stand out for their efficiency and reliability. In this guide, we will explore the key steps and tips to ensure optimal results when using our permanent jewelry welding equipment.

1. Selecting the Right Sunstone Welder:

The first step to achieving permanent jewelry welding success is choosing the right jewelry welder for your specific needs. Consider factors such as wattage, pulse control, and weld spot size to match the intricacies of your jewelry projects. We offer a range of models designed for various jewelry applications, so make sure to select one that aligns with the scale and complexity of your work.

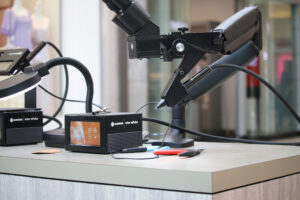

Sunstone welder
Our permanent jewelry welders fits perfectly on desk tops

2. Preparing the Jewelry:

Before diving into the welding process, meticulous preparation of the jewelry is crucial. Clean the surfaces to be welded thoroughly to remove any contaminants that might interfere with the welding process. Additionally, ensure that the pieces to be welded are properly aligned for a seamless bond.

3. Optimizing Welding Parameters:

Our jewelry welders provide adjustable parameters, including power, pulse duration, and frequency. Experiment with these settings on sample pieces to find the optimal combination for your specific materials and design. Fine-tuning the parameters ensures that you achieve the right balance between strength and aesthetics in the welded joint.

4. Using Proper Fixturing:

To maintain precise alignment during welding, utilize appropriate fixturing tools. These tools help secure the jewelry pieces in the correct position, preventing any movement that could compromise the accuracy of the weld. Proper fixturing is especially crucial for delicate or intricate designs.

5. Mastering Permanent Jewelry Welding Techniques:

Sunstone permanent jewelry welders allow for various welding techniques and for complex designs for chains, anklets and bracelets. Familiarize yourself with these techniques and practice on scrap materials before working on valuable jewelry pieces. This practice will help you refine your skills and achieve consistent, high-quality results.

6. Post-Welding Cleanup:

After completing the permanent jewelry welding process, it’s essential to address any residual discoloration or oxidation on the jewelry. Use appropriate cleaning methods, such as pickling or ultrasonic cleaning, to restore the original luster of the metal. This final step adds the finishing touch to your permanent jewelry welding project.

7. Ensuring Safety:

Always prioritize safety when working with our permanent jewelry welders. Use appropriate protective gear, including gloves and eye protection, to shield yourself from potential hazards. Familiarize yourself with the specific safety guidelines provided by Sunstone to ensure a secure working environment.


Prioritise safety when working with customers

8. Conclusion:

Achieving permanent jewelry welding perfection with our permanent jewelry welders requires a combination of the right equipment, meticulous preparation, and skilled technique. By selecting the appropriate Sunstone welder, optimizing welding parameters, utilizing proper fixturing, mastering various welding techniques, and ensuring post-welding cleanup, you can consistently produce stunning and durable jewelry pieces. Remember to prioritize safety throughout the process for a successful and satisfying jewelry welding experience.

9. Discover our permanent jewelry product line up:

Are you looking for a permanent jewelry welder to boost your business? Check our complete permanent jewelry line up here!

Productronica

Visit C-Welding at Productronica 2023

C-WELDING TO SHOWCASE CUTTING-EDGE MICRO WELDING EQUIPMENT AT PRODUCTRONICA 2023 IN MUNICH

C-Welding is set to make a significant presence at Productronica 2023 in Munich. The international trade fair, which focuses on electronics production, will be held from November 14 to 17 at the Messe München exhibition center. C-Welding will use this opportunity to exhibit their latest advancements in resistance welding, pulse arc welding, and battery welding technologies.

Productronica, a renowned platform for the electronics manufacturing industry, provides a global stage for companies to showcase their cutting-edge technology products, services, and innovations. C-Welding’s participation in this event reflects their commitment to staying at the forefront of micro welding technology and their desire to connect with industry professionals and potential clients from around the world.

WHAT TO EXPECT FROM C-WELDING AT PRODUCTRONICA 2023:

  1. Resistance Welding Solutions: C-Welding has a strong track record of delivering high-quality resistance welding equipment. Visitors to their booth can expect to see a wide range of solutions that cater to the needs of various industries. From automotive to aerospace, C-Welding offers specialized resistance welding solutions that meet the highest standards of quality and performance.
  2. Pulse Arc Welding Innovations: Pulse arc welding is gaining prominence in the electronics and semiconductor industries due to its precision and efficiency. C-Welding will showcase their state-of-the-art pulse arc welding equipment, highlighting the benefits it brings to the production processes of these high-tech sectors.
  3. Battery Welding Expertise: As the demand for electric vehicles and renewable energy solutions continues to rise, battery welding technology is of paramount importance. C-Welding will present their latest advancements in battery welding equipment and machines, addressing the needs of the rapidly evolving energy storage market.

Our participation in Productronica 2023 underscores our dedication to pushing the boundaries of micro welding technology and their commitment to providing the best solutions for their customers. The event will provide an excellent opportunity for industry professionals, engineers, and decision-makers to engage with C-Welding’s experts and explore the latest welding innovations firsthand.

We are excited to be a part of Productronica 2023. This event offers us a unique platform to interact with professionals from the electronics and manufacturing industries, share our expertise, and demonstrate how our welding solutions can contribute to their success.

VISIT OUR BOOTH AT THE AAT ASTON STAND (HALL 2A, STAND 578)

C-Welding invites all attendees to visit their booth at Productronica 2023 and learn more about their cutting-edge welding equipment. The company’s representatives will be available to discuss specific applications, provide technical insights, and explore potential collaborations.
